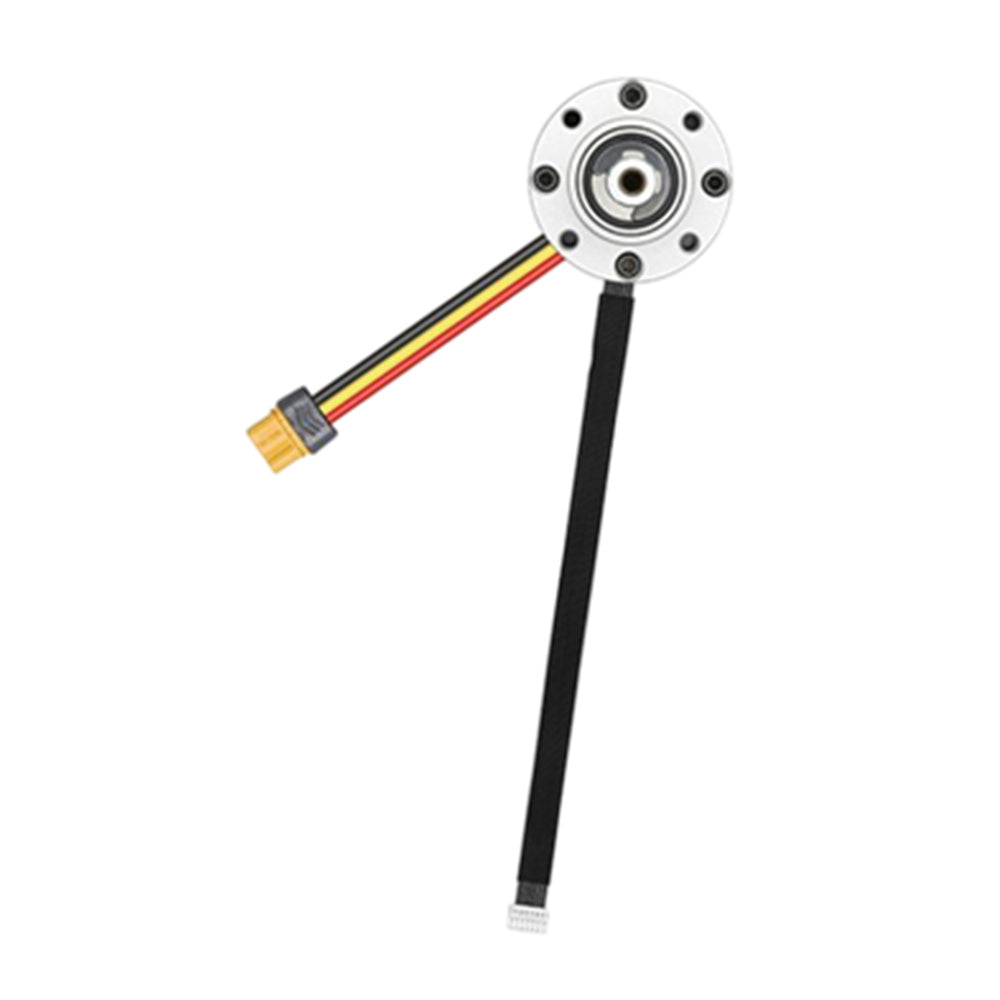

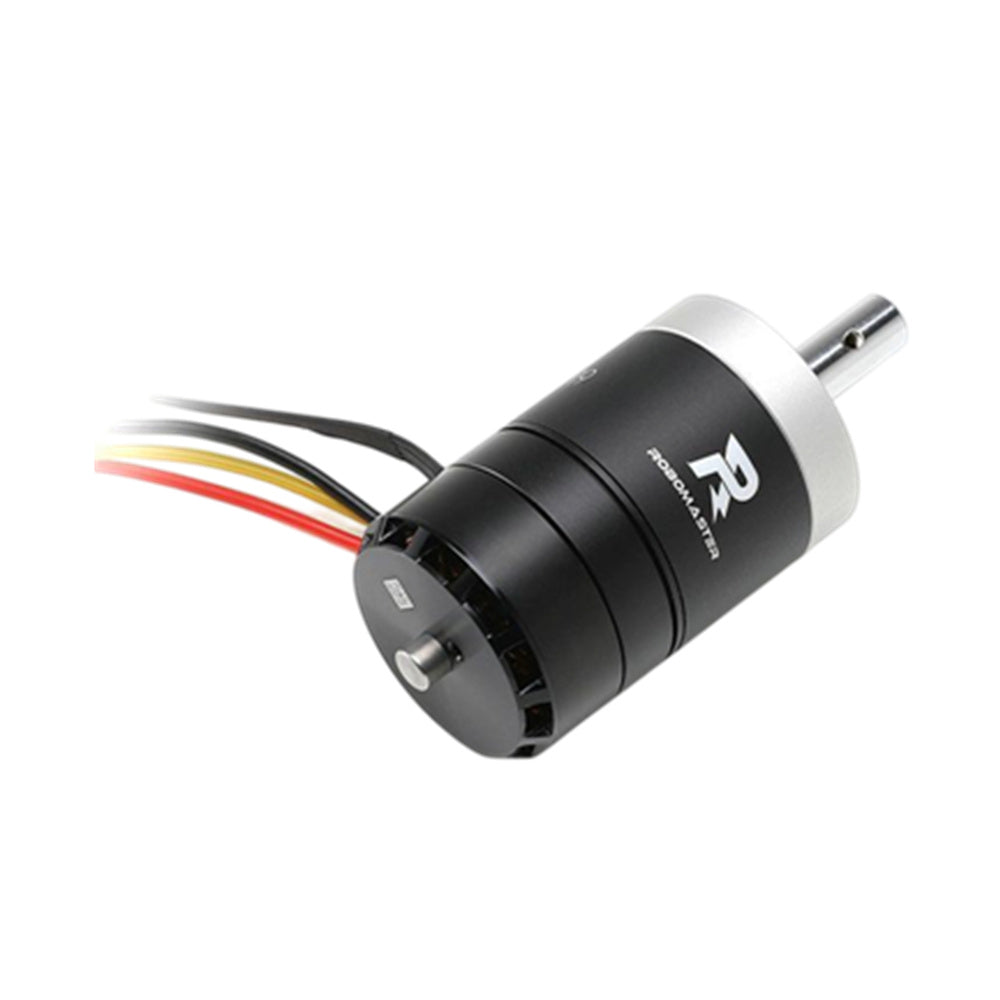

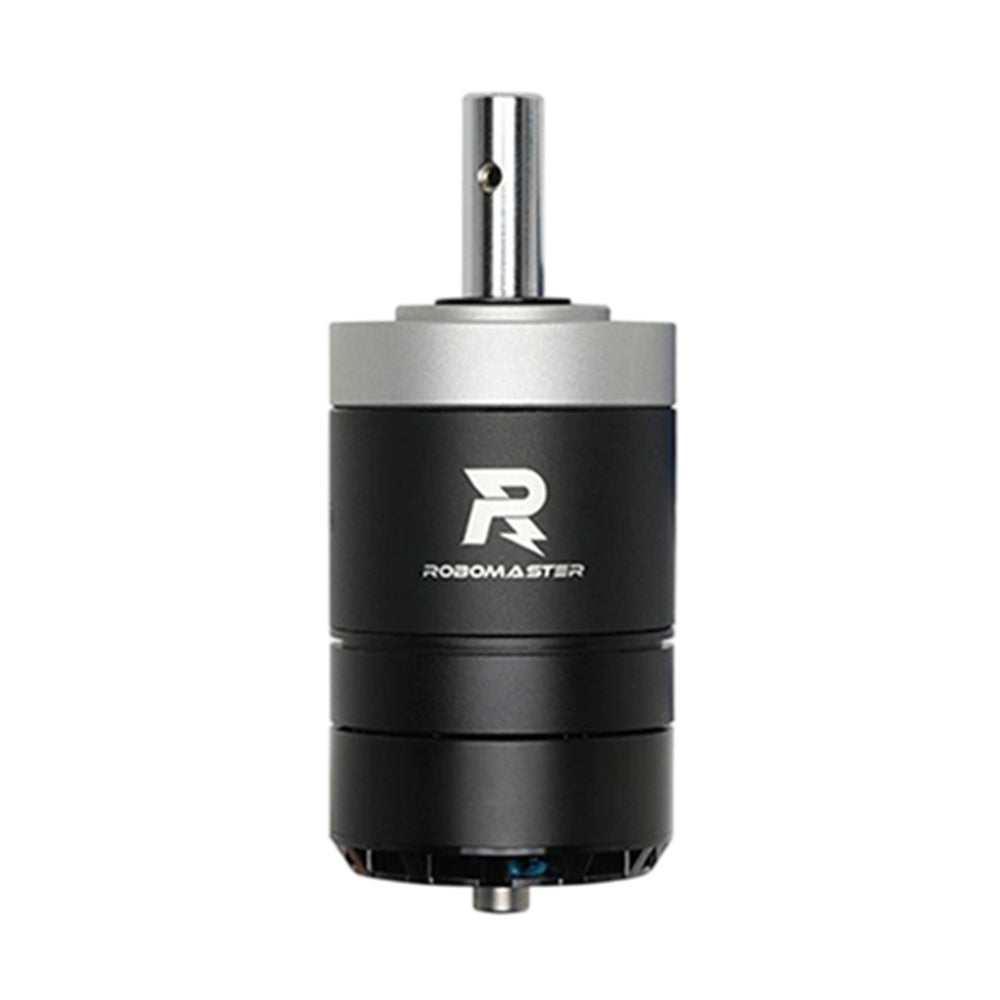

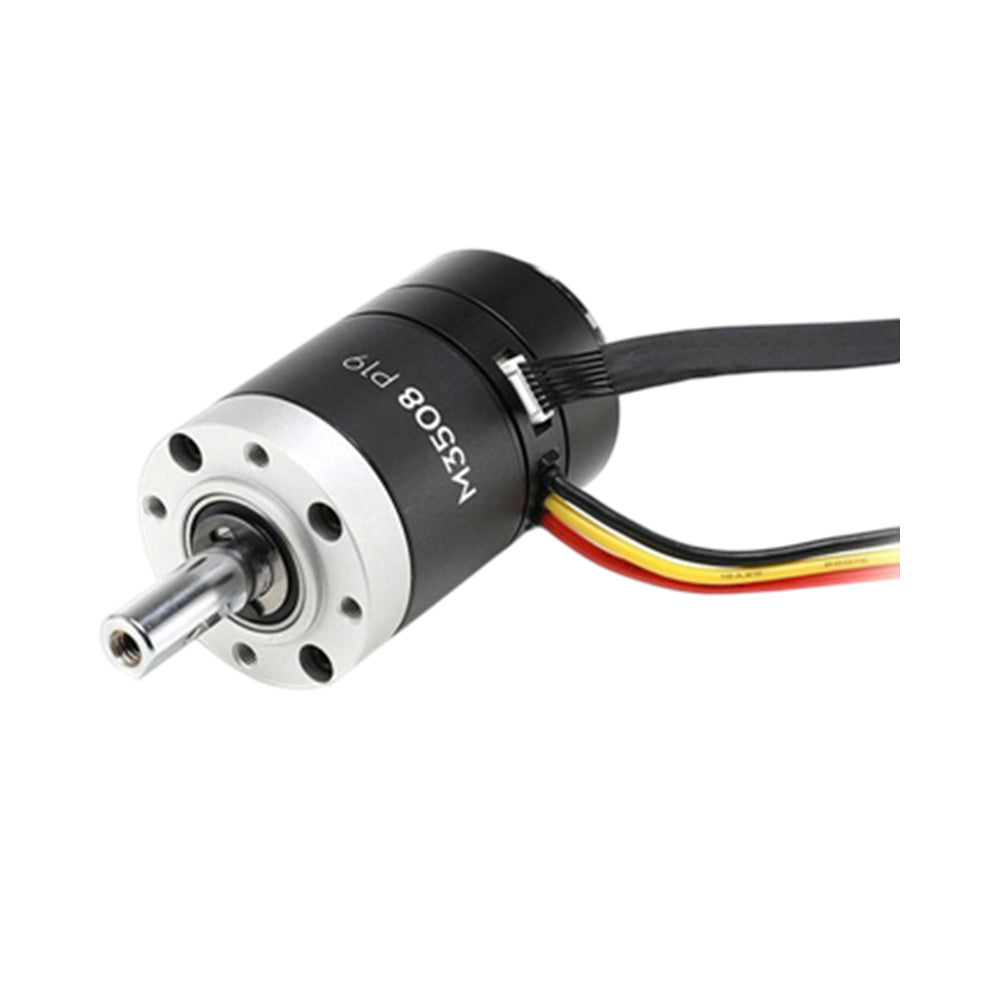

M3508 P19 Motor For Robomaster S1
About this item :
Compatibility:
This product compatible with RoboMaster S1
Features:
Robomaster M3508
The M3508 deceleration motor set is designed for high-performance robot platforms, with a compact size providing strong power and rich intelligent protection. The motor and reducer are perfectly matched, equipped with customized FOC electric adjustment, which can be widely used in robot mobile platform power, drive modules and other mechanisms, helping you seize the opportunity.

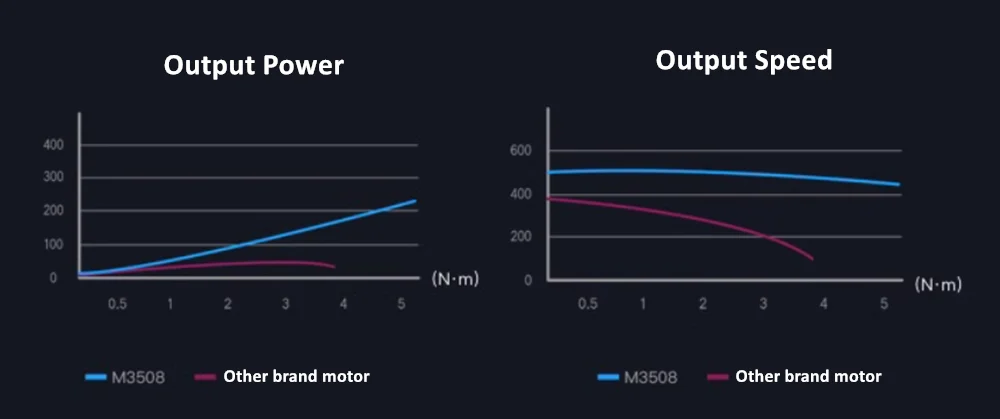

1. Strong power and small size:
A flexible robot platform requires faster speed and greater power. The M3508 deceleration motor set has a maximum power of up to 220W and a maximum torque of 5N · m *; The maximum continuous power is 150W and the continuous torque is 2.8N · m *. The FOC control provides stable torque regardless of the speed, allowing the robot to respond quickly while maintaining stable power.
(Measured at room temperature of 25 ℃)
2. The M3508 deceleration motor set has industry-leading power density, providing high power while being only 20% smaller in size and weight than equipment of the same level, saving a lot of space and outputting more power, allowing competitive robots to operate efficiently.
3. Multiple security protections:

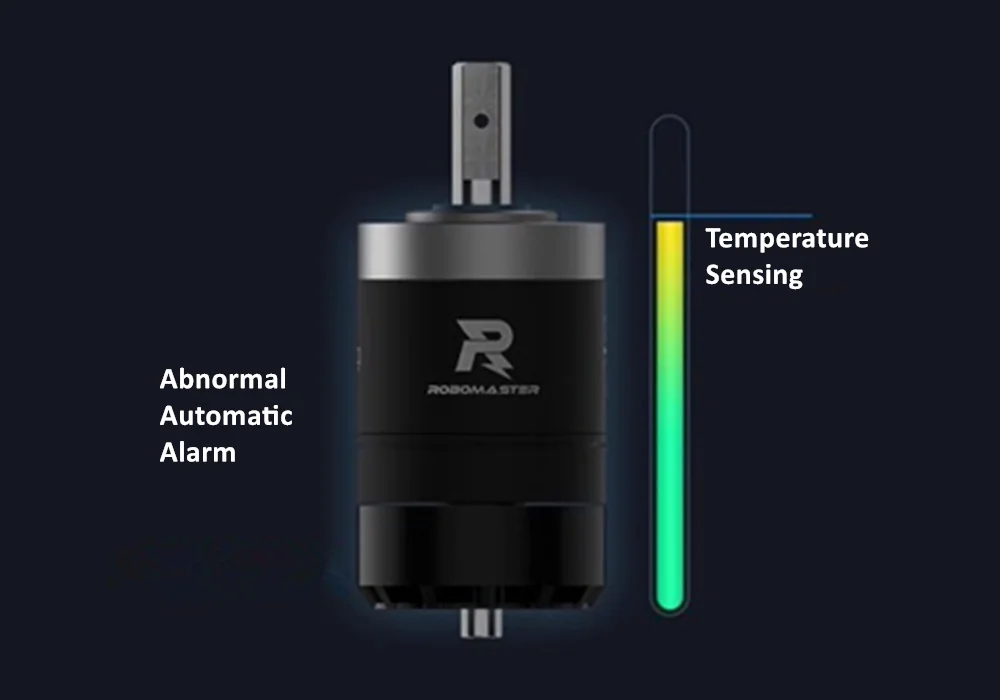

Equipped with multiple sensors, it can automatically detect abnormal conditions such as high temperature and wire breakage, and give timely alarms to quickly locate faults, making it safer to use.
4. Simple setup:

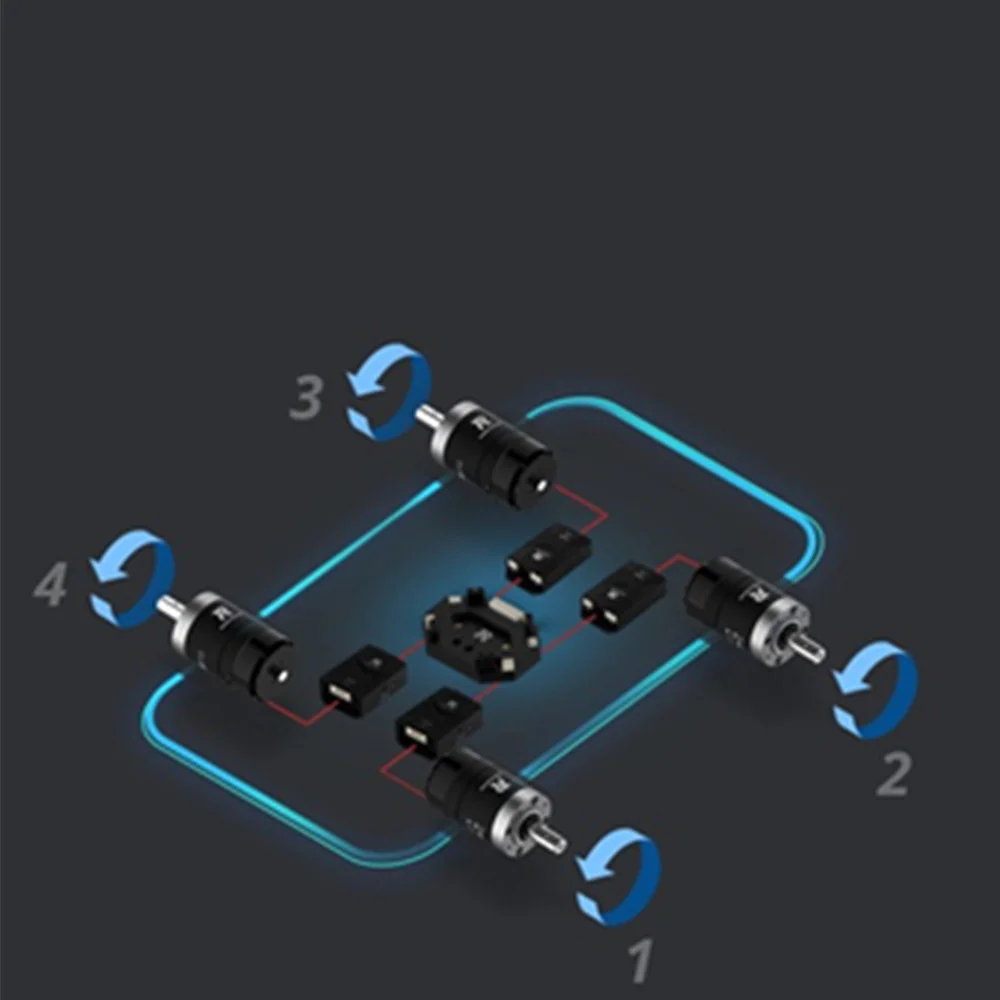

When multiple motors are installed on the CAN bus of the robot platform, there is no need to set the motor ID separately. In the fast ID setting mode, manually rotate the motors in sequence to set the motor ID. Motor ID conflicts will be automatically prompted.
5. Calibration free, more intelligent:
The position sensor provides precise feedback on the motor rotor position, and the motor comes with a built-in memory chip that can automatically record sensor calibration parameters, eliminating the tedious calibration process and making installation and replacement more convenient.
6. Flexible control:

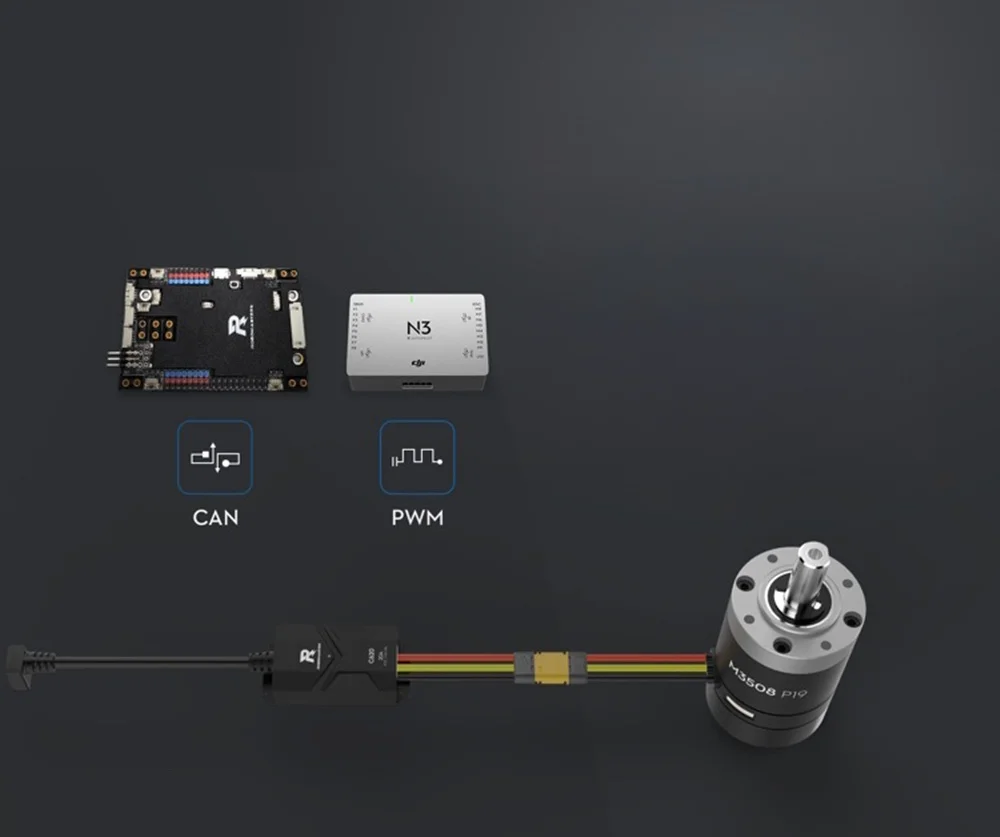

The M3508 deceleration motor set supports PWM signal input control and CAN bus command control, and the CAN bus can also read real-time status information such as motor rotor position. By using RoboMaster Assistant, motor parameters can be adjusted to ensure optimal operation of the motor.
(PWM control and CAN control cannot be used simultaneously)
6. Technical parameters:
1) M3508 reducer motor set parameters:
Rated voltage: 24V
Idle speed: 480rpm
Continuous maximum torque: 2.8N - m
Maximum speed at 2.8Nm: 469rpm
Operating environment temperature: 0~50 ℃
Weight: 365g

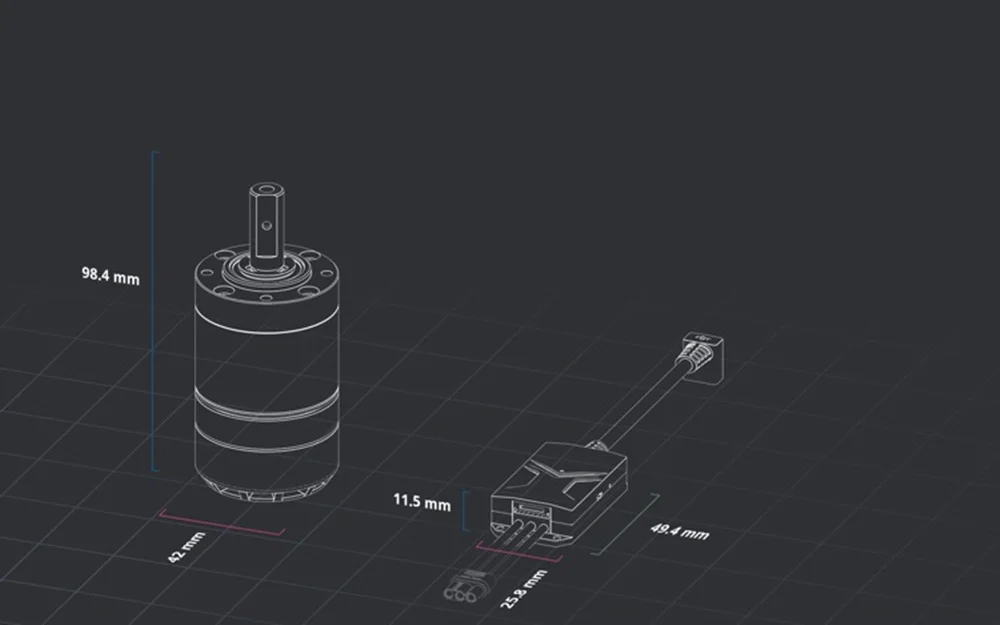

Outer diameter: 42mm
Total length: 98.4mm

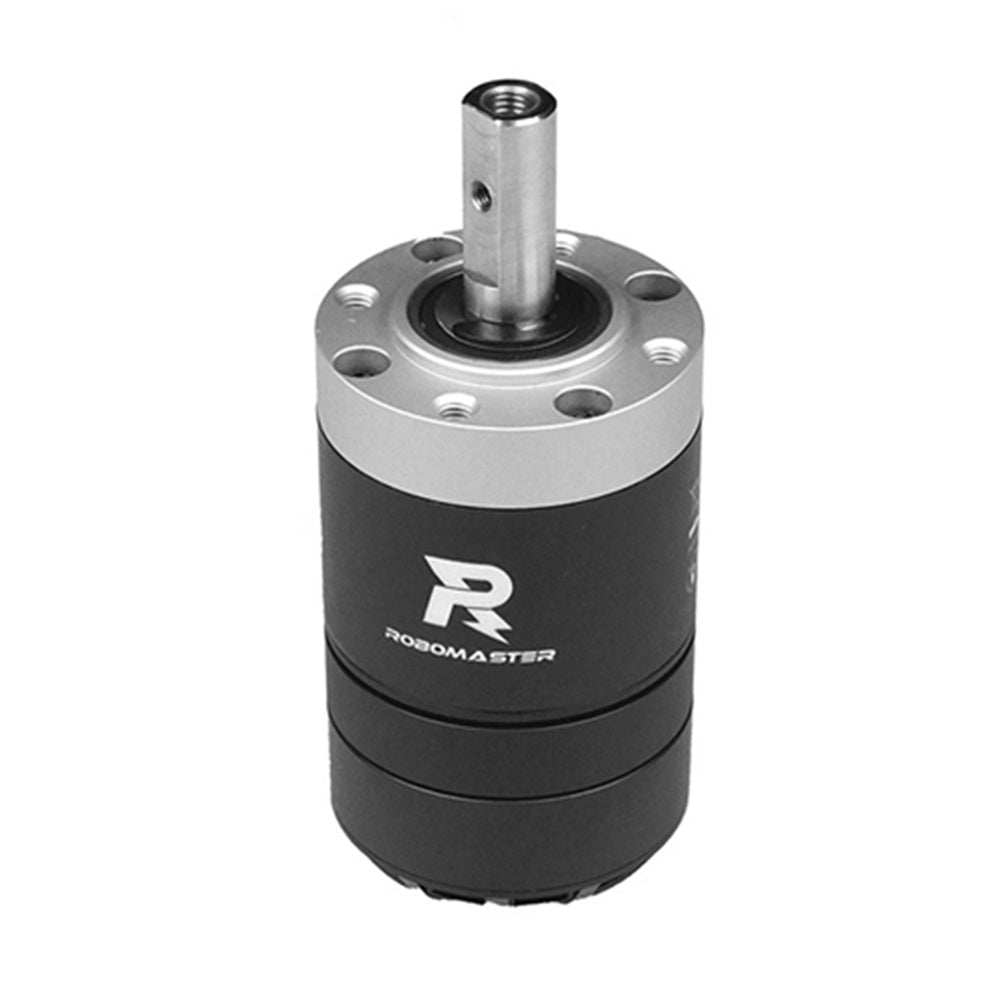

Output shaft: D-type with threaded hole
Output shaft diameter: 10mm
Attentions: Before making a purchase, Please carefully considering your robot models and size well . Don't make the wrong purchase.
